Timer Pulleys




Timer Pulleys



THE SALIENT FEATURES :
TUFF TIMER PULLEYS

• High grade Engineering Plastic
• Strength close to Cast Iron
• Low Drive Weight
• Jerk & vibration free
• Minimum heat built-up
• Positive non-slip engagement
• High Mechanical efficiency
• No Lubrication required
• Abrasion resistant



Tuff Timing Pulleys


Tuff Timing Pulleys

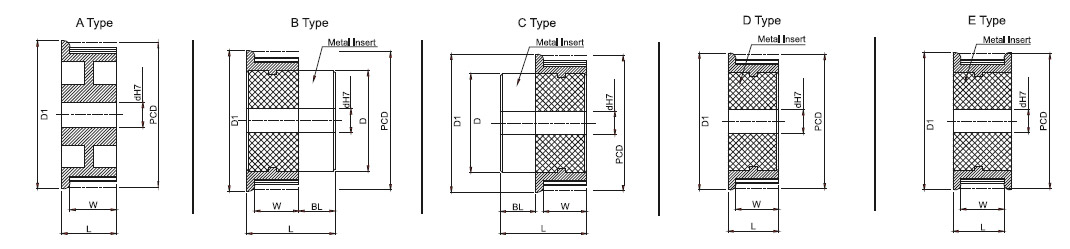

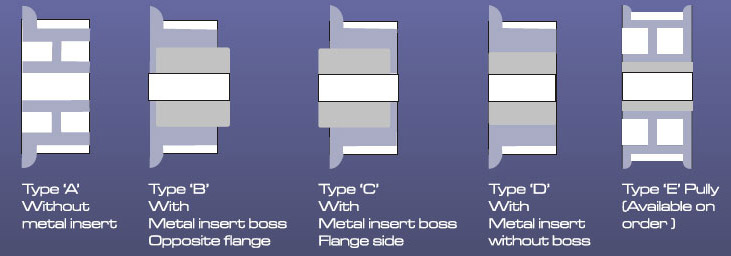

No Of TEETH TYPE Pilot Bore (d) Max Bore (dmax) Metal Insert (Dm) Boss
(D )
Boss Length
(BL)
Teeth Width (w) PCD
MXL (2.032 mm) Pitch TUFF TIMER PULLEYS
12MXL A 6 - - 16 10 12 -
15MXL A 5* 5 - - - 12 9.70
15MXL A 6* 6 - 16 6 12 9.70
16MXL A 4 4 - - - 12 10.30
16MXL A 5* 5 - - - 12 10.30
20MXL A 6* 6 - - - 11.5 12.90
20MXL C 5 5 9 16 6 11.5 12.90
22MXL C 5 5 9 16 6 12 14.23
24MXL C 4 6 10 14 7 12 15.5
25MXL C 5 6 12 12 - 13 16.10
26MXL A 5 6 - 19 7.5 13 16.80
26MXL C 5 6 12 19 7.5 13 16.80
30MXL A 8 8 - - - 13 19.41
30MXL D 8 8 12 - - 13 19.41
32MXL A 6.35* 6.35* - - - 13 20.70
32MXL D 4 6 16 - - 13 20.70
32MXL D 6 6 16 - - 13 20.70
40MXL A 6* 6 - - - 12 25.80

40MXL B 6 15 20 20 8 12 25.80
45MXL D 8 8 16 - - 12 29.07
50MXL C 5 15 27 27 15 12 32.35
60MXL A 6 6 - - - 12 38.82
60 MXL C 8 15 32 24 8.5 17 38.82
72MXL B 5 20 25 25 10 13 46.50
120MXL C 8 12 23 25 9.3 13.5 77.54
144MXL A 25 30 - - - 13 93.10
144MXL B 6 18 30 34 17 13 93.10
USED IN VARIOUS
Indexing,
Electronic Equipments,
Dispensing Equipments.

timer-pulleys

























No Of TEETH TYPE Pilot Bore (d) Max Bore (dmax) Metal Insert (Dm) Boss
(D )
Boss Length
(BL)
Teeth Width (w) PCD
T5 Pitch TUFF TIMER PULLEYS
12T5 C 6 6 10.5 21 7 14 19.10
13T5 A 8 6 - - - 15.2 20.70
15T5 A 10 8 - - - 18 23.87
18T5 B 6 6 22 20 6 10.5 28.64
19T5 A 10 10 - - - 18 30.23
20T5 B 6 13 20 20 5.5 15.2 31.80
20T5 B 8 13 20 20 5.5 15.2 31.80
24T5 D 8 13 24 - - 14 38.20
30T5 D 6 15 25 - - 13 47.70
32T5 D 6 15 25 - - 14 50.90
33T5 D 6 15 25 28 8 13 52.50
40T5 B 6 15 28 - - 15 63.66
63T5 D 10 75 85 - - 10 100.31
USED IN VARIOUS
Paper folding Machines,
Vending Machines

timer-pulleys








No Of TEETH TYPE Pilot Bore (d) Max Bore (dmax) Metal Insert (Dm) Boss
(D )
Boss Length
(BL)
Teeth Width (w) PCD
XL (5.08 mm) TUFF TIMER PULLEYS
10XL A 6* 6 - 16 6 14 16.10
10XL C 5 8 10 16 6 14 16.10
10XL E 6* - - 16 6 12.5 -
11XL C 5 8 11 18 6 13.5 17.78
12XL A 8* 8 - 20 6 12 19.40
12XL C 5 10 12.5 18 6.5 12 19.40
14XL C 6 10 16 20 10 13 22.63
15XL B 5 10 14 20 8 12 24.20
15XL C 5 10 14 20 15 12 24.20
16XL A 6 - - - - 14 25.88
16XL B 5 10 16 20 8 12 25.88
16XL C 5 15 18 21 12 14 25.87
16XL E 5 15 18 21 12 14 25.87
18XL B 5 14 22 24 10 14 29.10
18XL C 6 18 22 25 11 14 29.10
19XL B 6 15 25 25 8 13 30.70
20XL A 15** 15 - - - 12 32.34
20XL B 5 20 25 25 10 12 32.34
20XL C 5 20 25 25 7 12.5 32.34
21XL A 24 - - - - 15.5 33.90
21XL B 5 20 25 25 10 16 33.90
21XL C 5 20 25 25 5 16 33.90
22XL A 5 - - - - 12 35.57
22XL A 16 26 - - - 12 35.57
22XL B 5 20 28 25 14 12 35.57
22XL C 5 20 28 25 14 12 35.57
23XL A 15** 15 - - - 13 37.19
23XL B 6 15 22 25 10 14 37.20
23XL C 6 15 30 30 8 14 37.20
24XL A 15** 15 - - - 13 38.81
24XL B 5 15 25 25 7 14 38.81
24XL B 5 15 30 30 8 13 38.81
24XL C 6 15 25 25 9 13 38.81
25XL A 15** 15 - - - 12 40.40
25XL B 5 20 32 32 15 12 40.40
26XL A 24* - - - - 12 42.04
26XL A 15** 15 - - - 12 42.04
26XL B 5 15 25 35 13 12 42.04
26XL B 5 15 30 30 13.5 11.5 42.04
26XL B 5 15 25 25 6 12 42.04
26XL

D

5 15 25 25 - 12 42.04
27XL A 15** 15 - - - 14 43.70
27XL B 5 15 22 25 11 14 43.66
28XL A 6* - - - - 12 45.28
28XL B 5 25 25 25 14 12 45.28
28XL C 5 15 25 25 14 12 45.28
29XL A 15 15 - - - 14 46.89
29XL C 5 15 25 25 12 14 46.89
30XL A 15** 15 - - - 14 48.50
30XL B 5 20 25 25 15 14 48.50
30XL C 8 30 40 40 15 14 48.50
31XL A 15** 15 - - - - 50.10
31XL B 5 15 25 25 10 12 50.10
32XL A 15** 15 - - - 12 51.74
32XL B 6 15 25 25 10 12 51.74
32XL B 6 15 25 25 11 14 51.74
32XL B 6 30 40 40 12 14 51.74
33XL A 15** 15 - - - 14 53.40
33XL B 6 15 - 25 12 14 53.40
34XL A 15** 15 - - - 14 54.98
34XL B 5 20 30 30 15 14 54.47
35XL A 15** 15 - - - 12 56.60
35XL B 6 15 28 28 15 12 56.60
35XL B 10 20 30 30 10 26 56.60
36XL A 15** 15 - - - 14 58.21
36XL B 6 15 25 25 10 12 58.21
36XL C 5 15 25 25 13 14 58.21
36XL C 8 40 50 50 15 14 58.21
37XL A 15** 15 - - - 12 59.83
37XL B 5 15 20 25 11 12 59.83
38XL A 15** 15 - - - 12.5 61.45
38XL B 5 15 25 25 10 12.5 61.45
39XL B 10 15 38 26.5 13 12.5 63.00
39XL D 10 25 38 - - 12.5 63.00
40XL A 15** 15 - - - 14 64.70
40XL B 5 15 30 30 15 14 64.70
41XL A 15** 15 - - - 12 66.30
41XL B 6 15 28 28 20 12 66.30
42XL A 15** 15 - - - 14 66.30
42XL B 6 20 30 28 13 14 67.90
43XL A 15** 15 - - - 13 69.50
43XL B 6 15 25 25 10 13 69.50
44XL A 15** 15 - - - 12 71.15
44XL B 8 20 30 35 14 13 71.15
45XL A 15** 15 - - - 13 72.77
45XL B 6 15 25 25 14 14 72.77
46XL A 15** 15 - - - 12 74.30
46XL B 5 15 25 25 18 12 74.30
48XL A 15** 15 - - - 13 77.60
48XL B 6 22 30 30 8 12 77.65
49XL A 15** 15 - - - 13.5 79.20
50XL A 15** 15 - - - 11.5 80.80
50XL B 6 22 35 35 16 11 80.80
50XL B 6 22 30 30 9 12 80.80
51XL A 15** 15 - - - 13 82.50
USED IN VARIOUS
Yarn Winders,
Educational Equipments,
Cutting Machines,
Oil Skimmers,
Packaging Machines,
Medical Equipments

timer-pulleys



















































timer-pulleys


No Of TEETH TYPE Pilot Bore (d) Max Bore (dmax) Metal Insert (Dm) Boss
(D )
Boss Length
(BL)
Teeth Width (w) PCD
XL (5.08 mm) TUFF TIMER PULLEYS
53XL A 15** 15 - - - 13 85.70
53XL B 6 15 25 25 10 13 85.70
54XL A 15** 15 - - - 12.5 87.30
54XL B 6 15 25 25 12 12.5 87.30
55XL A 15 15 - - - 13 88.90
55XL B 8 15 25 25 7 13 88.90
57XL A 15** 15 - - - 13 92.17
57XL B 6 15 25 28 8 13 92.17
57XL B 6 15 28 28 22 13 92.17
58XL A 15** 15 - - - 13 93.80
58XL B 5 15 28 28 13 13 93.80
60XL A 15** 15 - - - 12.5 97.00
60XL B 6 15 26 26 9 12.5 97.00
61XL A 15** 15 - - - 11 98.64
61XL B 8 15 25 25 12 11 98.64
64XL A 15** 15 - - - 12 103.50
64XL A 20** 20 - - - 12 103.50
64XL B 8 15 25 30 11 12 103.50
66XL A 15* 15 - - - 14 106.72
66XL A 20* 20 - - - 14 106.72
66XL B 8 - 30 30 10 14 106.72
70XL B 10 25 35 35 10 10 113.20
72XL B 8 22 35 35 10 13 116.43
82XL B 6 15 26 30 10 12 132.60

USED IN VARIOUS
Conveyors, Extruders, Machines,
SPM's System Integration in Robotics

timer-pulleys










No Of TEETH TYPE Pilot Bore (d) Max Bore (dmax) Metal Insert (Dm) Boss
(D )
Boss Length
(BL)
Teeth Width (w) PCD
8M HTD TUFF TIMER PULLEYS
20 8M B 10 28 40 40 10 26.5 50.95
24 8M B 10 38 50 50 10 26.5 61.14
26 8M D 15 38 50 - - 25 66.21
40 8M C 10 38 50 - 12 26 101.90
48 8M D 10 38 50 - - 26.5 122.20
56 8M D 20 38 50 - 7 25 142.60
64-8M D 10 48 60 - - 24 162.97
68-8M D 10 48 60 - 8 24 173.16












No Of TEETH TYPE Pilot Bore (d) Max Bore (dmax) Metal Insert (Dm) Boss
(D )
Boss Length
(BL)
Total
length (L)
OD PCD Fl.dia (D1) Teeth Width (w)
L Pitch (9.525 mm ) TUFF TIMER PULLEYS

10L

C

6

16

21

25

10

40

29.56

30.30

36

28

10L

D

6

16

24

24

-

-

29.56

30.30

36

28

11L

D

8

12

22.5

22.5

-

-

32.59

33.30

38

28

12L

B

8

20

28

28

12

44

35.62

36.38

41

30

12L

D

8

20

28

28

-

-

35.62

36.38

41

30

13L

B

8

20

32

32

17

47

38.65

39.40

42

28

13L

D

8

20

32

32

17

47

38.65

39.40

42

28

14L

B

8

20

32

33

16

46

41.69

42.40

48

28

14L

D

8

20

32

33

-

-

41.69

42.40

48

28

15L

B

8

25

35

34

12

43

44.72

45.48

51

28

15L

D

8

25

35

34

-

-

44.72

45.48

51

28

16L

C

10

32

40

38

14

44

47.75

48.50

52

28

16 L

B

10

32

40

38

10

40

47.75

48.53

52

28

16L

D

10

32

40

38

-

-

47.75

48.50

52

28

17L

B

8

30

42

42.5

12

42

50.78

51.50

57

28

17L

D

8

30

42

-

-

-

50.78

51.50

57

28

18L

B

8

30

42

42.5

12

43

53.81

54.50

60

28

18L

D

8

30

42

-

-

-

53.81

54.50

60

28

19L

B

8

35

47

45

18

51

56.85

57.61

67

28

19L

D

8

35

47

-

-

-

56.85

57.61

67

28

20L

B

10

38

50

40

10

41

59.88

60.64

65

28

20L

D

10

38

50

-

-

-

59.88

60.64

65

28

21L

C

10

38

55

50

10

40

62.91

63.66

68

28

21L

D

10

38

55

-

11

-

62.91

63.66

68

24.5

22L

B

10

20

30

40

12

42

65.94

66.70

71

28

24L

B

10

35

45

45

12

42

72.01

72.80

78

28

24L

C

10

35

45

45

12

42

72.01

72.70

78

28

25L

B

10

35

45

45

12

42

75.04

75.83

81

28

25L

D

10

30

40

-

-

-

75.04

75.80

81

27

32L

D

10

40

50

-

-

-

96.26

97.02

104

27

40L

B

10

38

50

50

10

43

120.52

121.20

126

30

40L

D

10

38

50

-

-

-

120.52

121.20

126

30

48L

B

10

38

50

50

10

43

144.76

145.53

149

30

48L

D

10

38

50

-

-

-

144.76

145.53

149

30

60L

D

15

38

50

-

-

-

181.15

181.90

188

30




No Of TEETH TYPE Pilot Bore (d) Max Bore (dmax) Metal Insert (Dm) Boss
(D )
Boss Length
(BL)
Teeth Width (w) PCD
T10 Pitch TUFF TIMER PULLEYS
12T10 B 8 20 28 28 10 29 38.20
12T10 E 8 20 28 28 8 29 38.20
12T10 B 8 20 28 28 12 54 38.20
12T10 E 8 20 28 28 10 54 38.20
20T10 A 25 25 - 35 10 31 63.69
20T10 A 25 25 - - - 31 63.69
24T10 B 10 32 38 42 19 29 76.43













No Of TEETH TYPE Pilot Bore (d) Max Bore (dmax) Metal Insert (Dm) Boss
(D )
Boss Length
(BL)
Teeth Width (w) PCD
S8M HTD TUFF TIMER PULLEYS
20 S8M B 10 28 40 40 10 26.5 50.95
24 S8M B 10 38 50 50 10 26.5 61.14







No Of TEETH TYPE Pilot Bore (d) Max Bore (dmax) Metal Insert (Dm) Boss
(D )
Boss Length
(BL)
Teeth Width (w) PCD
MXL Pitch DOUBLE PULLEYS
30 MXL D 6 6 12 - - 11 19.41
45 MXL D 8 8 16 - - 12 29.07









No Of TEETH TYPE Pilot Bore (d) Max Bore (dmax) Metal Insert (Dm) Boss
(D )
Boss Length
(BL)
Teeth Width (w) PCD
5M HTD PULLEYS
18 5M B 8 14 21 21 9 17 28.66
36 5M B 10 26 38 38 9 16 57.3
36 5M D 10 26 45 - - 16 57.3
48 5M B 8 20 30 30 10 16 76.40
60 5M B 8 20 30 30 10 16 95.50
72 5M B 10 35 50 50 10 21 114.6
72 5M D 10 35 50 - - 21 114.6
90 5M B 12 25 34 34 9 17 143.31













No Of TEETH TYPE Pilot Bore (d) Max Bore (dmax) Metal Insert (Dm) Boss
(D )
Boss Length
(BL)
Teeth Width (w) PCD

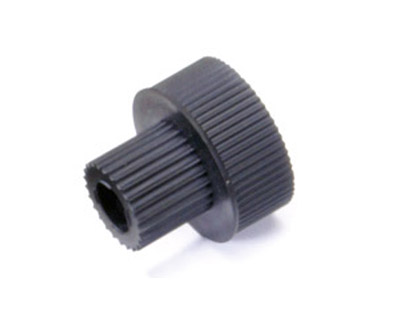

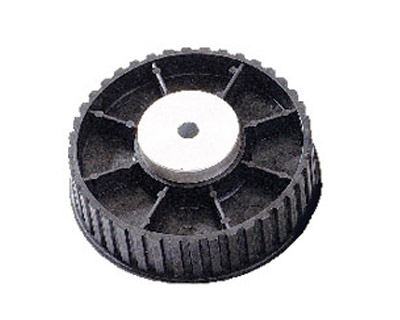

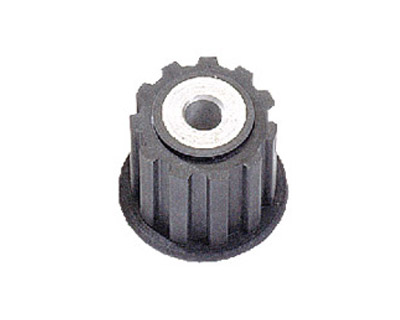

3M HTD PULLEYS
18 3M A 8 8 - - - 9 17.18
18 3M A 8 8 - - - 16.5 17.18
18 3M A 6.4 6.4 - - - 9 17.18
18 3M C 5 5 9 18 8 16.5 17.18
21 3M C 10 10 18 18 8 11 20.05
27 3M A 8* 8 - - - 9 25.78
27 3M B 5 12 16 16 8 16.5 25.78
30 3M C 17 - 22 35 8 20 28.65
30 3M D 6 16 21 - - 17 28.65
32 3M A 8 8 - - - 9 30.55
40 3M B 17 - 32 32 8 20 -
50 3M B 15 - 40 35 8 12 -
54 3M B 5 20 25 25 8 16.5 51.57

USED IN VARIOUS
Big Conveyors,
SPM's, Gantries, Hoists





Top

Designed by : MID   Hosted by : GID   Promoted by : PBD
